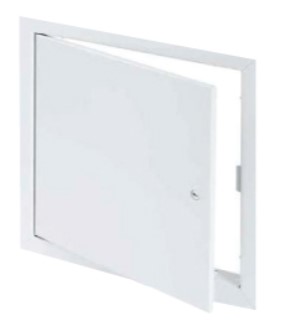

ACCESS PANEL DOOR (APD)
DESCRIPTION:
Access Doors are suitable wherever access will be needed into ducting on a regular basis, to allow periodic cleaning of duct and/or air devices. Manufactured from 22 swg aluminium sheet, square access panel doors are double skin layered with 25mm thick insulation sandwiched and hinged from two end which is controllable by stainless steel lock.
Features:
- Material: Aluminium Body, S.S. Lock.
- Construction: Double layered with thermal inside, hinged in frame with lock on the door.
- Powder Coating Colour: RAL 9010, RAL 9016 or customised.
- Cores: Removable.
Alias:
- Access Door
- Access Panel Door
- Duct Access Door

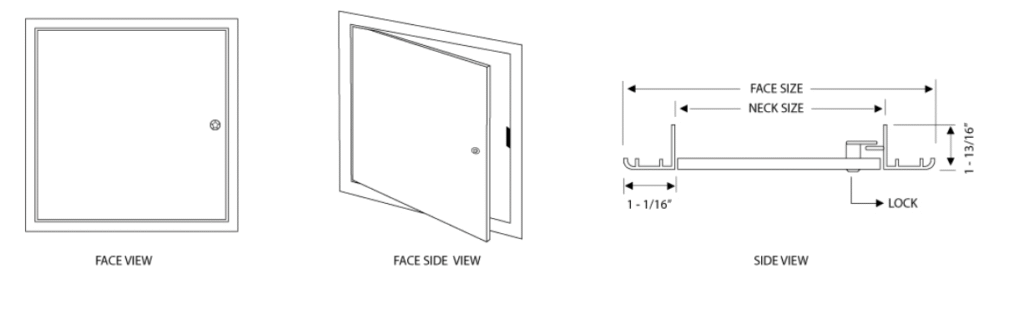

Diagram:
Technical Data:
| ITEM | NECK SIZE | FACE SIZE | HEIGHT |
|---|---|---|---|
| APD9 | 225*225 | 275*275 | 45 |
| APD12 | 300*300 | 350*350 | 45 |
| APD15 | 375*375 | 425*425 | 45 |
| APD18 | 450*450 | 500*500 | 45 |
