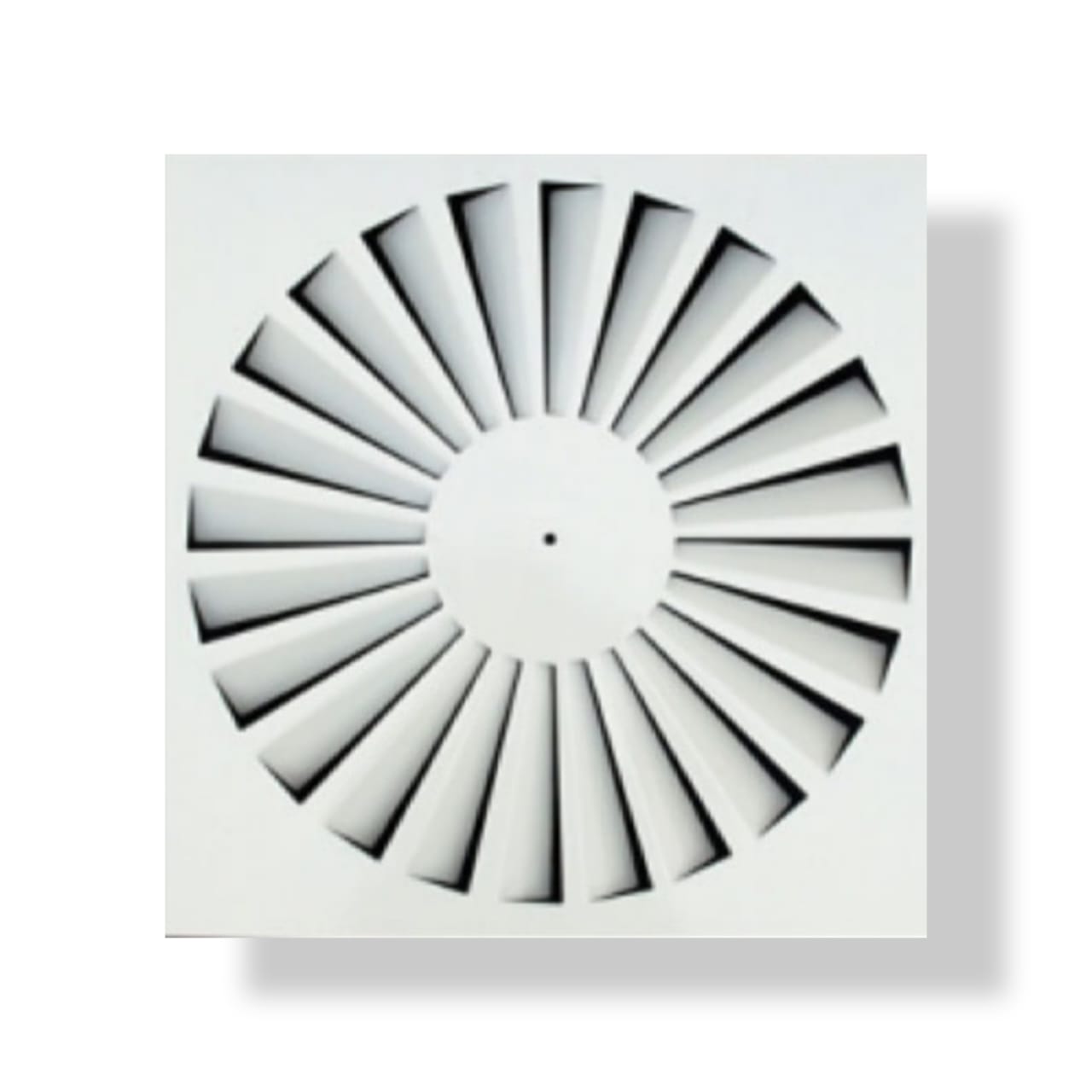

SWIRL DIFFUSER (SWD)
DESCRIPTION:
The Swirl Diffuser (SWD) has fixed blades that are curved in round order to create radial air movement. It ensures that it produces strong horizontal swirl with high inductivity to allow the introduced flow into the ambient air to reduce temperature with the physics of rapid mix technology.
It is easy for installation and can be fixed with round damper if needed.
Features:
- Material: Steel or aluminium
- Construction: Full face from one piece, calculated drop-in notches are curved in a circular motion.
- Powder Coating Colour: RAL 9010, RAL 9016 or customised
- Cores: Non-removable.
- Optional: Butterfly damper (BD), radial blade damper (RBD).
Alias:
- Swirl Diffuser

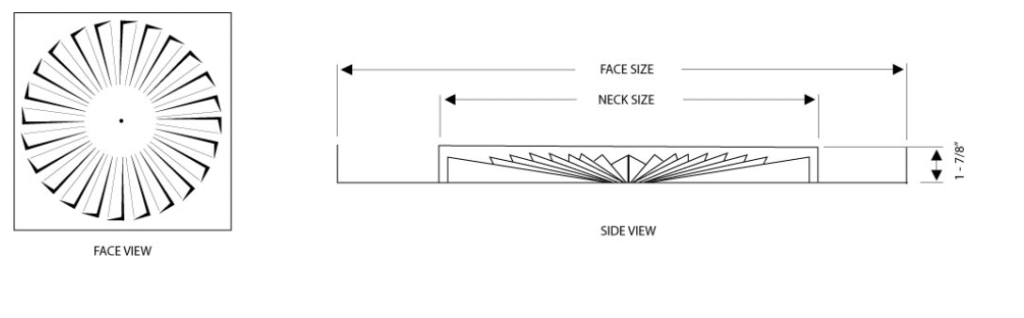

Diagram:
Technical Data:
| ITEM | NECK SIZE | FACE SIZE | HEIGHT |
|---|---|---|---|
| SWD6 | Ø145 | 595*595 | 47 |
| SWD9 | Ø220 | 595*595 | 47 |
| SWD12 | Ø295 | 595*595 | 47 |
| SWD15 | Ø370 | 595*595 | 47 |
| SWD18 | Ø445 | 595*595 | 47 |
